DS-3WF0EC-5ACT

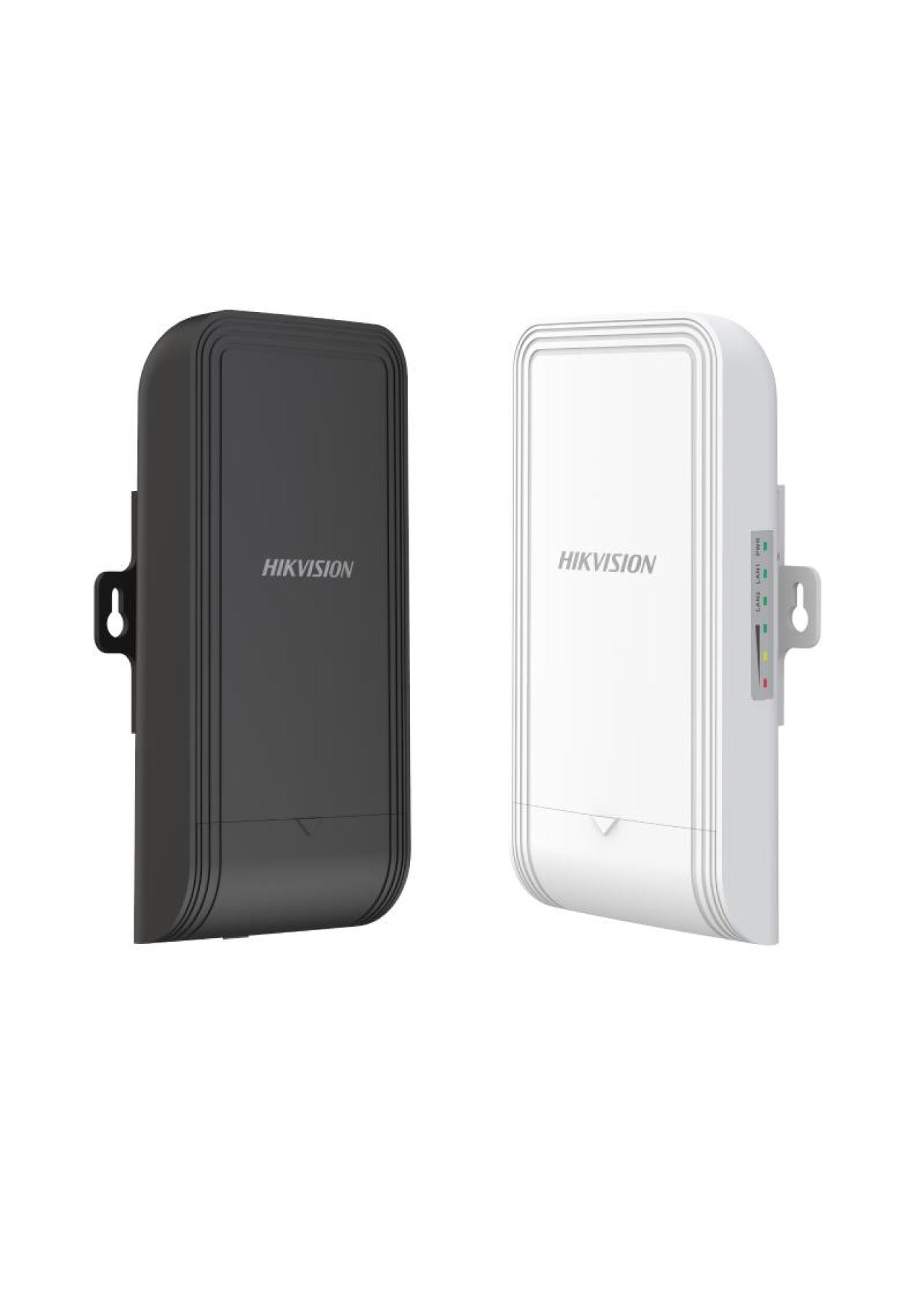

5 GHz 867 Mbps 500 m Elevator Wireless Bridge

5 GHz 867 Mbps elevator wireless bridge supplied as a paired link. Specifications as published by Hikvision for this exact model. Supplier code DS-3WF0EC-5AC/T corresponds to this official model string.

Point-to-point wireless transmission
2×2 MIMO
Passive PoE powering

Request quote — DS-3WF0EC-5ACT WhatsApp enquiry +254 720 359 107 Download datasheet Download installer manual

Your enquiry carries the brand and exact model number automatically — no need to type it.

At a glance

Key features

Power
12 VDC / 1 A passive PoE
Video technology
Point-to-point wireless transmission

Only specifications published by the manufacturer for this model are listed. Anything not yet verified is confirmed in writing when we quote.

Specification

Technical specifications

Brand: Hikvision
Model: DS-3WF0EC-5ACT
Product name: 5 GHz 867 Mbps 500 m Elevator Wireless Bridge
Manufacturer lifecycle: Discontinued by Hikvision; availability subject to remaining stock.
Technology: Point-to-point wireless transmission, 2×2 MIMO, Passive PoE powering
Wireless standard: IEEE 802.11 a/n/ac
Frequency band: 5150–5250, 5250–5350, 5470–5725, 5725–5825 MHz
Throughput: ≤ 867 Mbps; 80 Mbps at 0.2 km, 40 Mbps at 0.5 km (PTP)
Transmission distance: Up to 500 m
Antenna: 8 dBi, H 50° / V 50°, 2×2 MIMO
Interfaces: 3 × 10/100 Mbps RJ45 port
Power supply: 12 VDC / 1 A passive PoE
