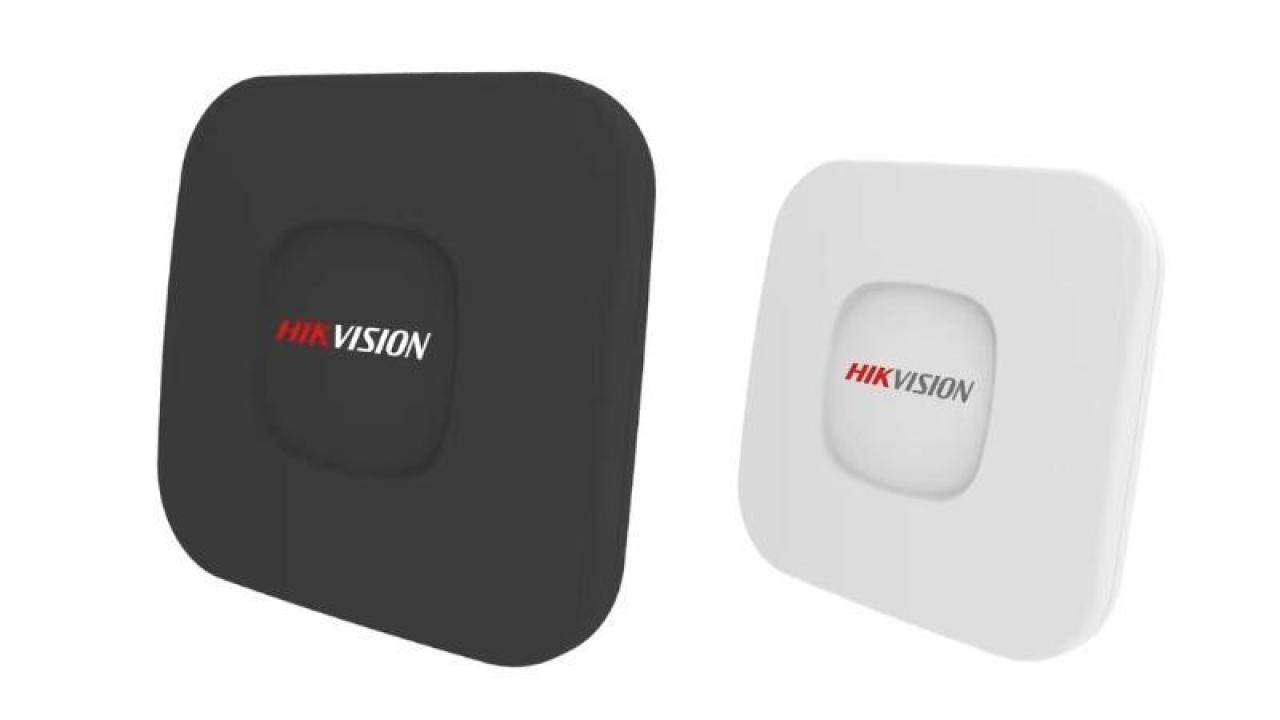

Official Hikvision family/configuration image.
Hikvision · Wireless Transmission
DS-3WF01C-2N
2.4 GHz 300 Mbps 500 m Elevator Wireless CPE
2.4 GHz elevator wireless CPE bridge for short-run lift shaft links. Specifications as published by Hikvision for this exact model.
- Point-to-point wireless transmission
- Passive PoE powering
Your enquiry carries the brand and exact model number automatically — no need to type it.
At a glance
Key features
Power
48 V / 0.25 A PoE or 12 VDC
Video technology
Point-to-point wireless transmission
Only specifications published by the manufacturer for this model are listed. Anything not yet verified is confirmed in writing when we quote.
Specification
Technical specifications
- Brand
- Hikvision
- Model
- DS-3WF01C-2N
- Product name
- 2.4 GHz 300 Mbps 500 m Elevator Wireless CPE
- Manufacturer lifecycle
- Discontinued by Hikvision; availability subject to remaining stock.
- Technology
- Point-to-point wireless transmission, Passive PoE powering
- Wireless standard
- IEEE 802.11 b/g/n (2T2R, 300 Mbps)
- Frequency band
- 2412–2472 MHz
- Throughput
- 300 Mbps (HT40) / 130 Mbps (HT20)
- Transmission distance
- Up to 500 m
- Antenna
- Internal 6 dBi, H 65° / V 60°
- Interfaces
- 3 × 10/100 Mbps RJ45 port
- Power supply
- 48 V / 0.25 A PoE or 12 VDC
Specifications verified from the manufacturer's official product information. The product image shown is verified manufacturer imagery.
Manufacturer documents
- DS-3WF01C-2N DatasheetDatasheet
- DS-3WF01C-2N User ManualUser Manual
Where it fits
Suitable applications
- Homes
- Offices
- Shops
- Warehouses
- Perimeter surveillance
- Indoor monitoring
If your site is not listed, tell us what you need to cover and we will advise whether this model suits it.
Catalogue classification
- Category
- Networking Equipment
- Subcategory
- Wireless Transmission
- Product type
- Wireless Bridge
Pricing is not published. We quote per project based on quantity, site and installation scope.
