DS-3E0505D-E

Name: Hikvision DS-3E0505D-E
Brand: Hikvision

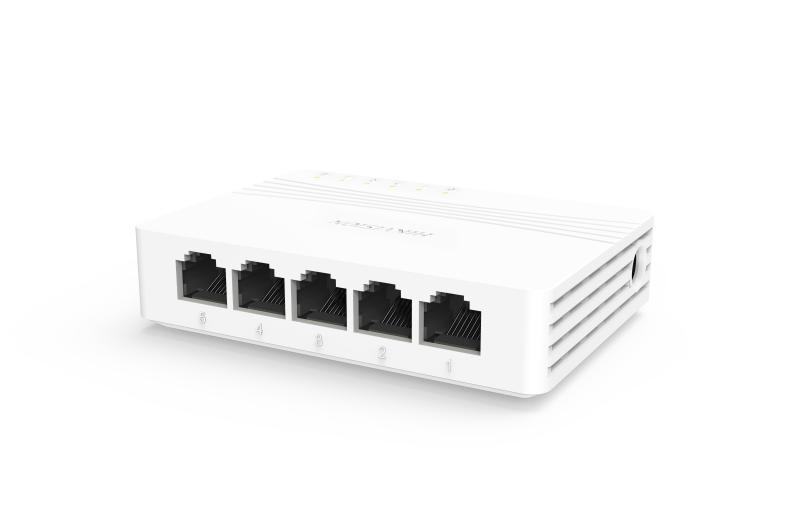

5 Port Gigabit Unmanaged Desktop Switch

Compact 5-port gigabit desktop switch for small camera clusters and office drops. Specifications as published by Hikvision for this exact model.

Your enquiry carries the brand and exact model number automatically — no need to type it.

At a glance

Key features

Only specifications published by the manufacturer for this model are listed. Anything not yet verified is confirmed in writing when we quote.

Specification

Brand: Hikvision
Model: DS-3E0505D-E
Product name: 5 Port Gigabit Unmanaged Desktop Switch
Manufacturer lifecycle: Discontinued on the Hikvision product page; availability subject to remaining stock.
Technology: 5 × 10/100/1000 Mbps ethernet ports, Store-and-forward switching, Supports MAC address auto-learning and aging, Simple, compact body design, Supports desktop and wall-mounting, Plug & play, easy to use
Ports: 5
Port type: 10/100/1000 Mbps RJ45 ports
PoE: Non-PoE
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Forwarding mode: Store-and-forward switching
Dimensions (W×H×D): 92.80 mm × 65.80 mm × 22.80 mm
Shell: ABS
Net weight: 0.03 kg
Power supply: 5 V DC, 0.6 A
Operating temperature: 0 °C to 40 °C
Operating humidity: 10% to 90% RH non-condensing
