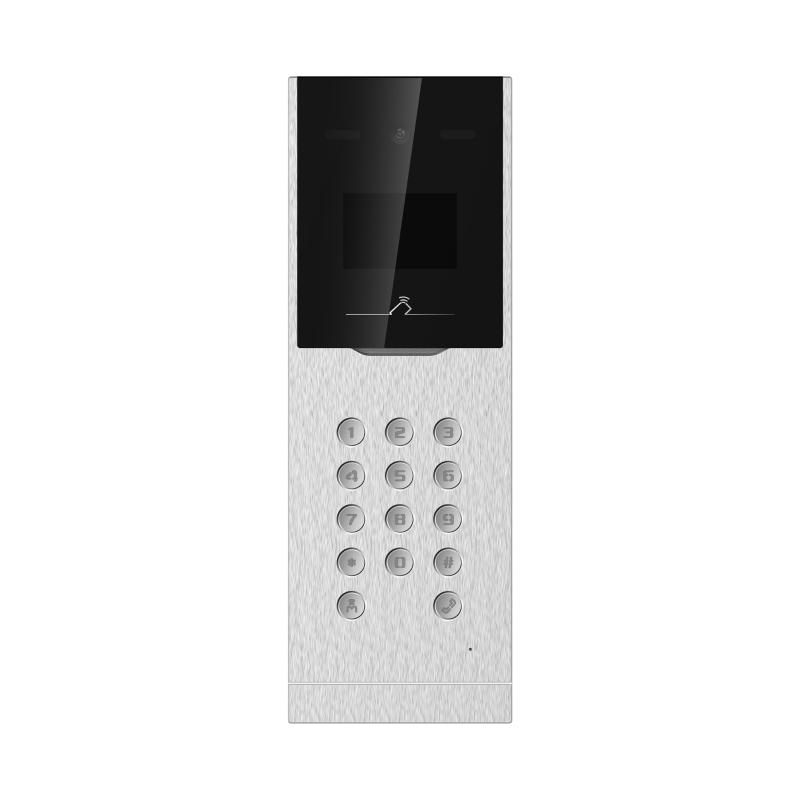

DS-KD8023-E6

3.5-inch metal network door station.

Pro Series metal IP door station with a 3.5-inch screen and built-in Mifare card reader. Discontinued by Hikvision; documentation retained for existing systems.

IP video intercom
Mifare card reading

Request quote — DS-KD8023-E6 WhatsApp enquiry +254 720 359 107 Download datasheet

Your enquiry carries the brand and exact model number automatically — no need to type it.

At a glance

Key features

Wide dynamic range
Digital WDR / 120 dB
Video technology
IP video intercom

Only specifications published by the manufacturer for this model are listed. Anything not yet verified is confirmed in writing when we quote.

Specification

Technical specifications

Brand: Hikvision
Model: DS-KD8023-E6
Product name: 3.5-inch metal network door station.
Authentication methods: Card, PIN
Connectivity: Ethernet
Manufacturer lifecycle: Marked Discontinued on the Hikvision product page. Listed for existing installations and legacy stock.
Technology: IP video intercom, Mifare card reading
Screen: 3.5-inch colourful LCD, 480 × 320
Lens: 2 MP HD camera
Video resolution: Main stream: 1920 × 1080p, 720p; Sub stream: 640 × 480p
Field of view: Horizontal: 70°, Vertical: 121°, Diagonal: 131°
WDR: Digital WDR / 120 dB
Supplement light: IR light, up to 3 m
Card reader: Built-in M1 card reading module
Network: TCP/IP, RTSP; 1 RJ-45 10/100/1000 Mbps
Protection: IP65
Unlock methods: Card and PIN code
