DS-K1T804MF

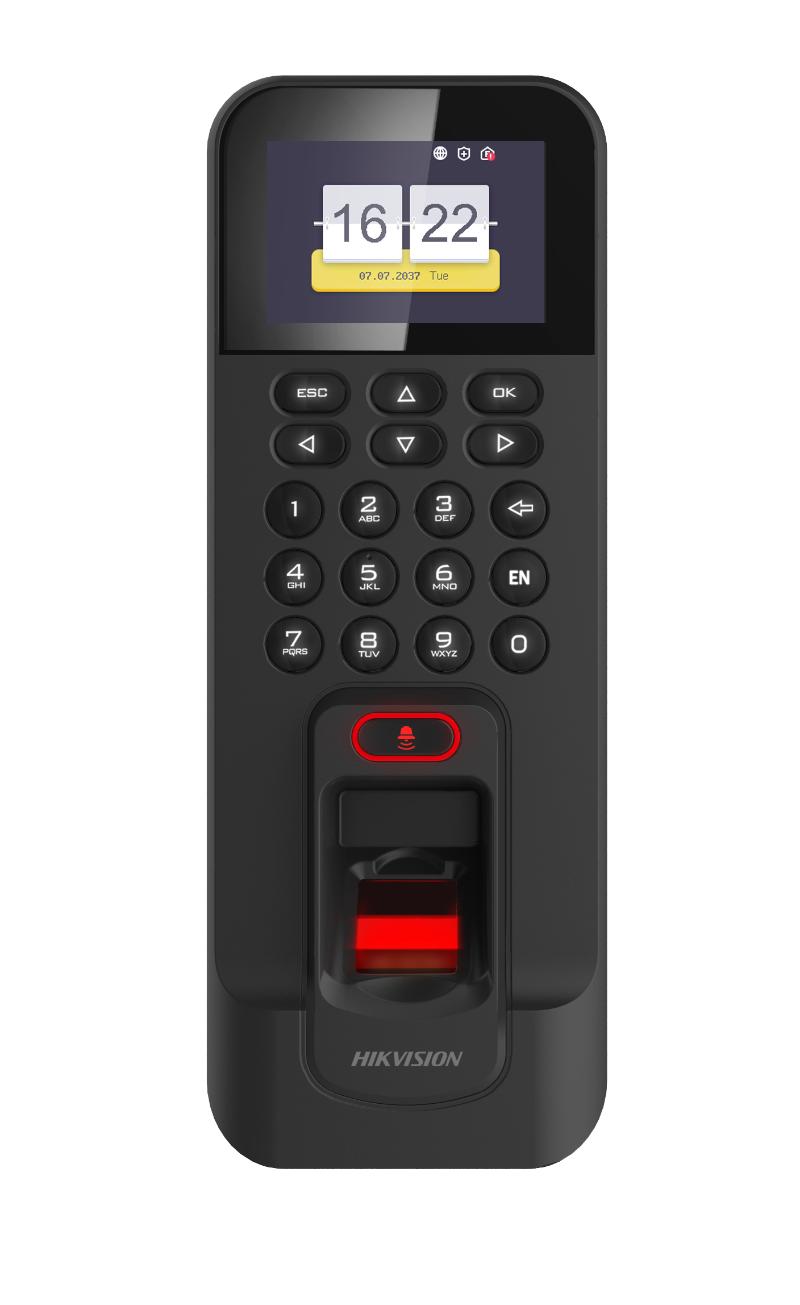

K1T804 Value Series Fingerprint Access Terminal

Standalone fingerprint and Mifare card terminal for small-site door control and time attendance. Specifications as published by Hikvision for this exact model.

Standalone access control fingerprint terminal
3,000 fingerprints, 3,000 cards and 100,000 events storage
Built-in card reader for Mifare 1 card
Communication via TCP/IP and Wi-Fi
RS-485 and Wiegand interfaces
Multiple time attendance status

Request quote — DS-K1T804MF WhatsApp enquiry +254 720 359 107

Your enquiry carries the brand and exact model number automatically — no need to type it.

At a glance

Key features

Product type
Fingerprint / Time Attendance Terminal
Authentication
Fingerprint, Card, PIN
Connectivity
Ethernet, Wi-Fi, RS-485, Wiegand
Fingerprint capacity
Up to 3,000 fingerprints; up to 10 per person
Card reading distance
0 to 5 cm
Power
12 VDC / 2 A

Only specifications published by the manufacturer for this model are listed. Anything not yet verified is confirmed in writing when we quote.

Specification

Technical specifications

Brand: Hikvision
Model: DS-K1T804MF
Product name: K1T804 Value Series Fingerprint Access Terminal
Authentication methods: Fingerprint, Card, PIN
Connectivity: Ethernet, Wi-Fi, RS-485, Wiegand
Manufacturer lifecycle: Discontinued on the Hikvision product page; availability subject to remaining stock.
Technology: Standalone access control fingerprint terminal, 3,000 fingerprints, 3,000 cards and 100,000 events storage, Built-in card reader for Mifare 1 card, Communication via TCP/IP and Wi-Fi, RS-485 and Wiegand interfaces, Multiple time attendance status
LCD screen: 2.4-inch (320 × 240 LCD-TFT display screen)
Fingerprint capacity: Up to 3,000 fingerprints; up to 10 per person
Storage: Up to 3,000 valid cards; up to 100,000 event records; up to 150,000 attendance records
Fingerprint recognizer: Optical fingerprint recognizer module
Fingerprint comparing mode: 1:1 and 1:N, N = 3000
Authentication duration: < 1 s (fingerprint and card)
Card reading distance: 0 to 5 cm
Communication interface: TCP/IP, RS-485 (for secure door control unit), Wiegand output (W26/W34) and input (Wiegand 26/34)
Audio: 1 buzzer and 1 loudspeaker
LED indicator: Power/status (red/green)
Power supply: 12 VDC / 2 A
Working temperature: −10 °C to 55 °C
