Hikvision DS-7104NI-K1/W/M 4-ch Mini 1U Wi-Fi NVR

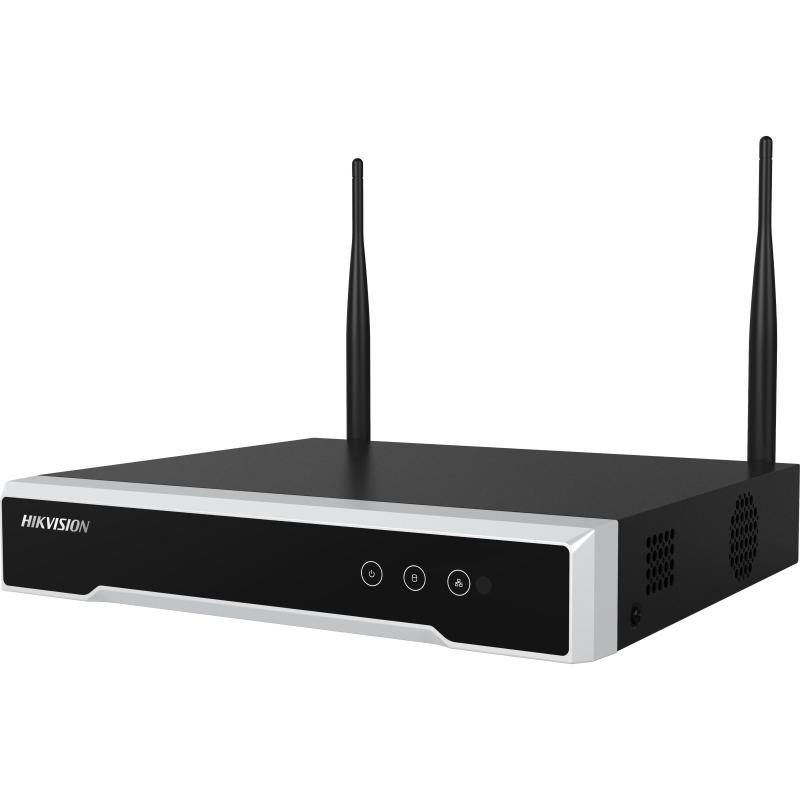

Official Hikvision family/configuration image.

Hikvision · Network Video Recorders (NVR)

DS-7104NI-K1/W/M

4-ch Mini 1U Wi-Fi NVR

Four-channel Hikvision Wi-Fi network video recorder for small sites where cameras join over 2.4 GHz wireless rather than cabled PoE. Held as legacy stock and quoted for supply only or supply and installation.

  • Up to 4 MP
  • 4-ch
  • IP / network video recording
  • Integrated Wi-Fi (2.4 GHz)
Request quote — DS-7104NI-K1/W/MWhatsApp enquiry+254 720 359 107Download datasheet

Your enquiry carries the brand and exact model number automatically — no need to type it.

At a glance

Key features

  • Recorder type

    NVR

  • IP camera channels

    4

  • Recording resolution

    Up to 4 MP

  • Series

    Special Series — DS-7100NI-K1/W/M Wi-Fi NVR

  • Decoding capability

    4-ch @ 1080p / 1-ch @ 4 MP

  • RAID

    Not supported

  • Video output

    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  • Network interface

    1 × RJ45 10/100 M Ethernet interface

Only specifications published by the manufacturer for this model are listed. Anything not yet verified is confirmed in writing when we quote.

Specification

Technical specifications

Brand
Hikvision
Model
DS-7104NI-K1/W/M
Part number
DS-7104NI-K1/W/M
Product name
4-ch Mini 1U Wi-Fi NVR
Recorder type
NVR
IP camera channels
4
Recording resolution
Up to 4 MP
Series
Special Series — DS-7100NI-K1/W/M Wi-Fi NVR
Manufacturer lifecycle
Hikvision's own product page marks this model Discontinued. Supplied from remaining stock only; availability subject to confirmation. Hikvision names no replacement model.
Technology
IP / network video recording, Integrated Wi-Fi (2.4 GHz)
Manufacturer product name
4-ch Mini 1U Wi-Fi NVR
IP camera channels
4-ch
Synchronous playback
4-ch
Supported camera resolution
Up to 4 MP
Incoming / outgoing bandwidth
50 Mbps / 40 Mbps
Decoding format
H.265+ / H.265 / H.264+ / H.264
Decoding capability
4-ch @ 1080p / 1-ch @ 4 MP
Recording resolution
4 MP / 3 MP / 1080p / 1.3 MP / 720p
HDMI output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output
HDMI and VGA simultaneous output
Audio output
1-ch, RCA (linear, 1 KΩ)
Network interface
1 × RJ45 10/100 M Ethernet interface
PoE
Not available — this is a Wi-Fi recorder with no integrated PoE ports
Wireless frequency band
2.4 GHz
Wireless standard
IEEE 802.11b/g/n
Antenna structure
2 × 2 MIMO
Wireless transmission speed
144 Mbps
RAID
Not supported
SATA interfaces
1
Maximum HDD capacity
Up to 6 TB per disk
USB interfaces
Rear panel: 2 × USB 2.0
Power supply
12 VDC
Power consumption
≤ 12 W
Working temperature
-10 °C to +55 °C
Working humidity
10% to 90%
Dimensions (W × D × H)
260 × 246 × 48 mm
Weight
≤ 1 kg

Specifications verified from the manufacturer's official product information. The product image shown is verified manufacturer imagery.

Manufacturer documents

Where it fits

Suitable applications

  • Homes and apartments
  • Small shops
  • Single-entrance premises
  • IP / network camera systems
  • Network camera systems fed from a separate PoE switch
  • Recorded systems with remote viewing

If your site is not listed, tell us what you need to cover and we will advise whether this model suits it.

Catalogue classification

Category
NVRs & DVRs
Subcategory
Network Video Recorders (NVR)
Product type
Network Video Recorder
Resolution class
Up to 4 MP

Pricing is not published. We quote per project based on quantity, site and installation scope.
